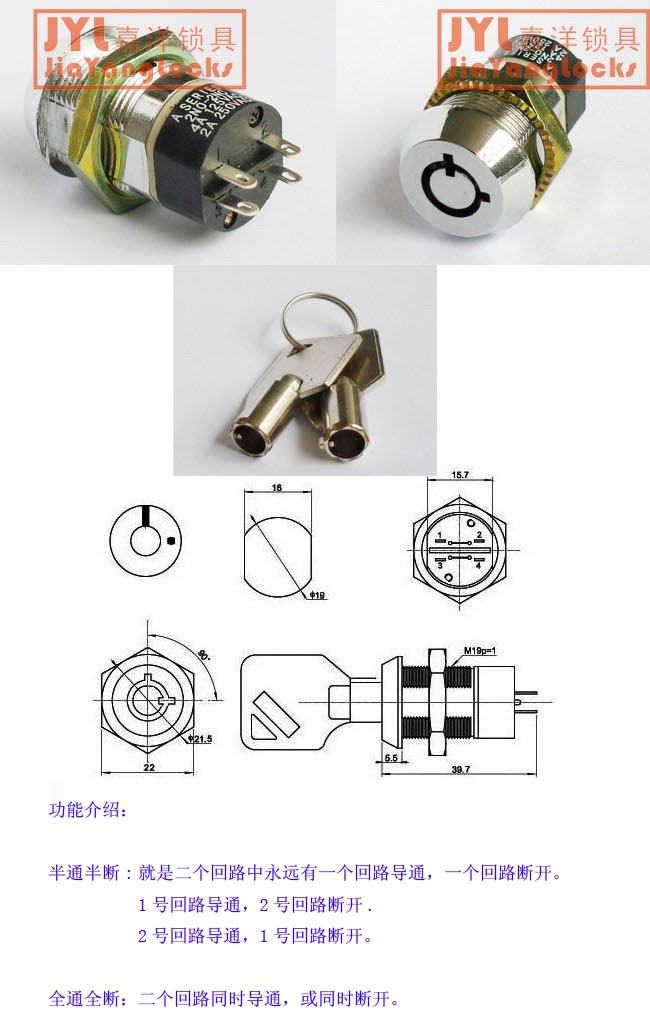

DESCRIPTIONS:
Green Zinc alloy die cast housing and cylinder.
Bright chrome or Green nickel-plated standard.
7 pin tumbler mechanism.
Brass made tubular keys, Green nickel-plated.
Key may be withdrawn in one or both positions.
Silver plated contacts and terminals.
2 position (off-on) 4 terminals.
Hex nut mounted.
1-10000 combinations available.
SPECIFICATIONS:
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact resistance: 10 Milliohms Max.
Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
Dielectric Strength: 1500VAC - 1 Minute.
产品名称 : 电源锁
详细规格 :
锌合金锁壳及（绝缘）锁心
镀银接点及端子
10000个以上锁匙变化
适用於电子设备、电脑、控制箱、电动玩具、家用电器等等，采用钥匙左、右45至180度转动，控制电源通断。
电气特性之详细说明:
额定电流(电压):4安培/125伏特 2安培/250伏特
接触电阻:最大值为20Milli欧姆
绝缘电阻:最小值为500Meg欧姆
耐压强度: 可承受1500伏特的交流电压1分钟 |
